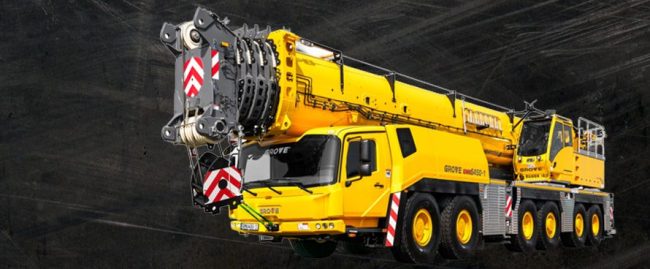

500 Ton Grove GMK6450-1

The GMK6450-1, the strongest heavy-duty six-axle crane on the market, equipped with MegaWingLift and capable of lifting loads up to 500 tons. It is our premier all-terrain crane, delivering unmatched stability and heavy lifting power.

Features:

BOOM

• Main boom: 51 ft – 197 ft, 5-section
• MEGAFORM®
• TWIN-LOCK®
• Luffing jib: 82 ft – 259 ft (optional)
• Fixed jib: 39 ft – 210 ft (optional)
• Self-rigging MegaWingLift™ (optional)

CARRIER

• Drive/steer: 12x8x12 Megadrive
• MEGATRAK®
• Engine: Mercedes-Benz OM473LA, 430kW
• Transmission: ZF Traxon 12
• EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))

SUPERSTRUCTURE

• 20° Tiltable superstructure cab
• Eco Mode
• CCS (Crane Control System)

COUNTERWEIGHT

• Total 135 t (0 t within 12 t/axle)

DIMENSIONS

• Compact dimensions: Minimum width 9.8 ft and overall length 57.4 ft
• Tailswing: 19.2 ft
• Outrigger base: 28.5 ft x 27.9 ft
• MAXbase™ (optional)
