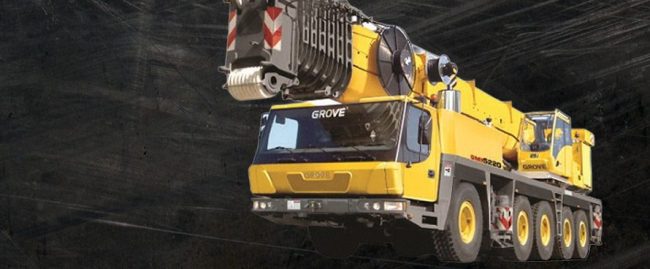

275 Ton Grove GMK5275

With a 275 ton capacity and 344 feet of total boom, the GMK5275 is a five axle all terrain crane that can lift loads up to 354 feet with swingaway jib and inserts. Equipped with the MEGATRAK suspension system, the GMK5275 offers true ground clearance on even the roughest of terrains.

Features:

• 275 USt capacity
• 44 ft – 223 ft seven-section full-power MEGAFORM™ boom with TWIN-LOCK™ pinning
• 39 ft – 69 ft hydraulic offset bi-fold swingaway and 26 ft intermediate lattice inserts
• Mercedes-Benz OM502LA, six-cylinder, 543 HP at 1800 rpm, max torque 1918 ft/lb at 1300 rpm (Tier 4i)
• *Alternate engine: Mercedes-Benz OM502LA, eight-cylinder, 563 HP at 1800 rpm, max torque 1991 ft/lb at 1200 rpm (Tier 3)
• MEGATRAK™ independent hydro-pneumatic suspension
• Allison transmission
